 Supply data:
Sheet size up to 1.00 mm:
1,200 x 1,200 mm
Sheet size from 1.50 mm
1,500 x 1,500 mm
Available thickness:
1.00 / 1.50 / 2.00 / 3.00
mm
|
novaflon 200 is the modified PTFE gasketing material which has
the widest chemical resistance of the novaflon range. In particular
against very strong acids and alkalines (pH 0-14).
The barium sulphate filled material shows a high mechanical resistance
to creep and is used particularly in the pharmaceutical and food
industry.

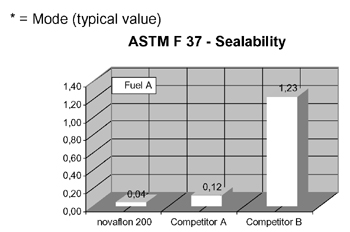

The tightness performance of novaflon 200 is the best in its
range It fulfills the strict German fugitive emissions regulation
TA-Luft and makes thus its contribution for a clean environment
for future generations.
Temperature range from ?210°C (-350°F) up to + 260°C
(500°F).
Approvals:
 FDA
TA-Luft
BAM
DVGW

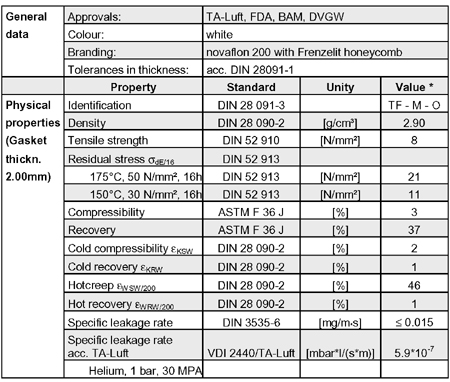

Technical data - preliminary:
For non-standard sizes, please consult factory.
Important Note to Puchaser:Values shown are typical and are not
to be used for specifications.
All data is subject to change
without notice. Before using, the user should determine the suitability
of the product for its intended
use, and the user assumes all
risk and liability in connection therewith. Specifications subject
to change without notice. |
novaflon 200 Chemical Resistant Gasketing
