 Feature : |

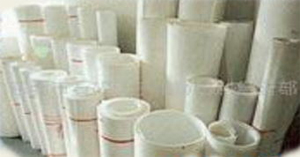

PTFE skived sheet are made of PTFE die pressing
roughcast, which has good dielectric performance and
non-aging, best anti chemistry corrosion ability and wide
applying internsion range.
|
|
Usage :
|
It is used as sealing element working in all kinds of medium, lubricate materials, electric isolation part
under different frequency, medium of capacitor, lead isolation and isolation of electrical appliance. |
Specification :
| Property |
Unit |
Result |
| Apparent density |
g/cm3 |
2.1-2.3 |
| Tensile strength◎ |
MPa |
20 |
| Ulimate elongation◎ |
% |
250 |
| Dialectric strength◎ |
Kv/mm |
10 |
Specifications :
Property |
thickness |
width |
length |
PTFE skivde sheet |
0.25-8mm |
850, 1000, 1200, 1500, 1800, 2000mm |
Request
according to the
customer
|
|
|
